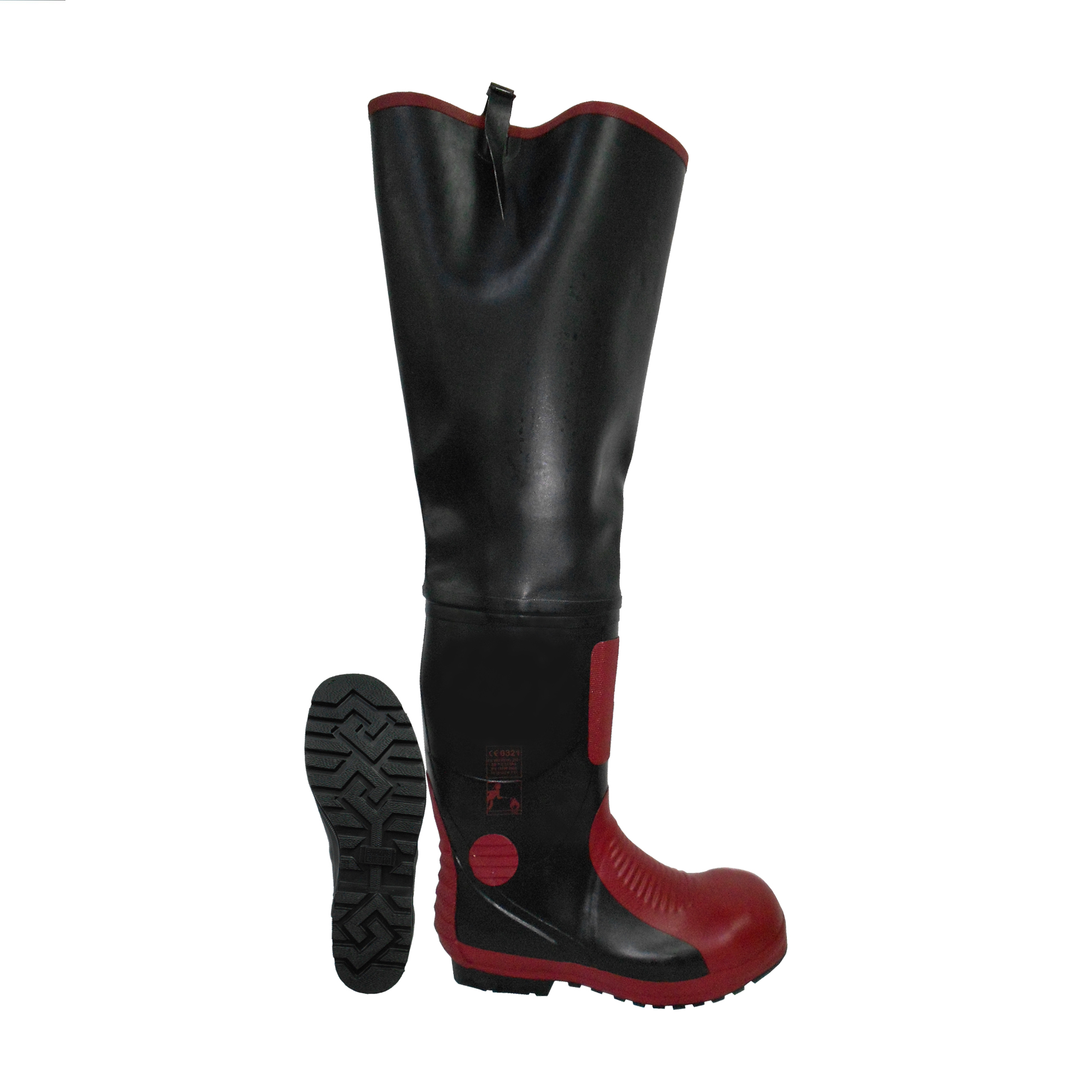

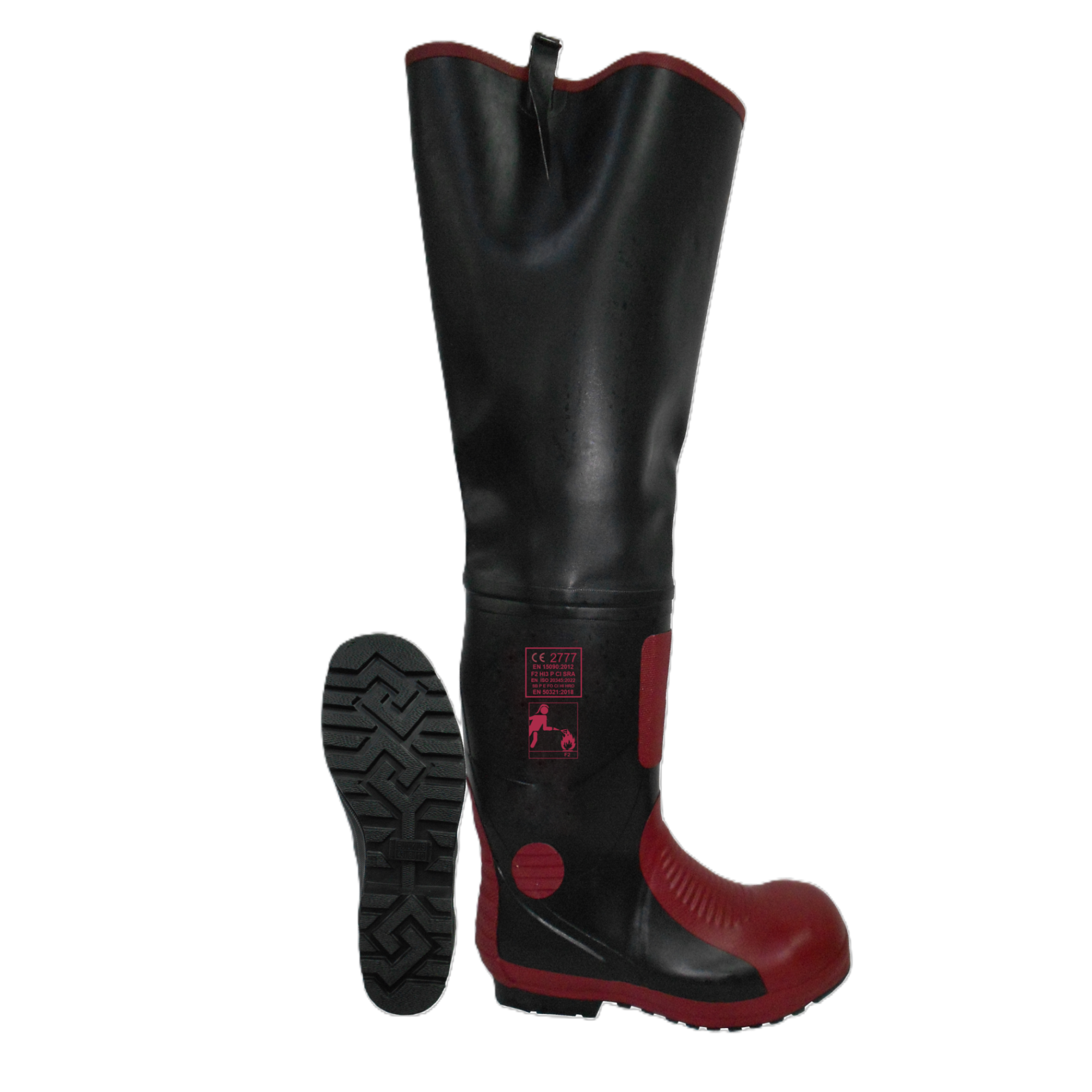

Art. 9797 HARVIK® EN/CSA/ASTM 5KV Dielectric Firefighter Hip Wader (STP)

EU Conformity PDF
Specification
Colour Black/Burgundy
Size range Euro: 36 – 50
UK : 3½ – 14½
US : 4½ – 15½
Type of construction Vulcanized Rubber Upper and Sole
Last/ Sole Pattern VSV/ NJV
Recommendation Structural fire fighting
General fire rescue
Bush fire fighting
Compliance

European Standard CE Approved –
EN 15090: 2012 (F2A HI3 P CI SRA)
EN ISO 20345: 2022 (SB P E FO CI HI SRA HRO)
EN 50321-1:2018 Class 0 (for installation with nominal voltage up to 1000V A.C. and 1500 D.C.)

F2I = Type 2 footwear for firefighters suitable for fire rescue, fire suppression, property conservation & etc. with electrical insulating properties
SB = Standard Basic Protection as per EN ISO 20345
HI3 = Heat Insulation Level 3
CI = Cold Insulation
SRA = Slip Resistance on ceramic tile with Sodium Lauryl Sulphate
FO = Fuel Oil Resistant Outsole
E = Heel Energy Absorption
P = Nail Penetration Resistance
HRO = Resistant to hot contact

CSA Z195-14 / ASTM F2413-18
Grade 1 Toe protection
Compression resistance, 11kN
Penetration resistance
18 kV Electric Shock Resistance (ESR) protection
Lining Material Extra comfort with woven cotton canvas
Upper construction Flame retardant upper with heat insulation
Waterproof
Reinforced rubber
Enhanced fire protection up to hip level
Buckled flexible strap for easy donning
Sole / Heel Flame retardant rubber outsole
Fuel oil resistant sole suitable for inimical environment
Slip resistant vulcanized rubber outsole
Excellent abrasion resistant for extra durability
Withstand 18kV of life current at dry condition
Heel energy absorption design to minimize heel impact
Catered to enter high temperature
Cold insulation sole construction
Steel Toe Cap Epoxy coated toe caps for anti-corrosion
Meets EN ISO 20345 impact and compression tests
Metal toe cap provides reliable protection in cold and hot environment
Steel Midsole Non-corrosive stainless steel
Withstands pin & sharp objects
Chemical Resistance Sole and Upper – Good resistant towards acids and alkali
Finishing Lacquer coating for weather protection
Packing Recyclable Polybag & 5 pairs in a carton

*Specifications of the product are subject to changes without prior notice for further enhancements.
